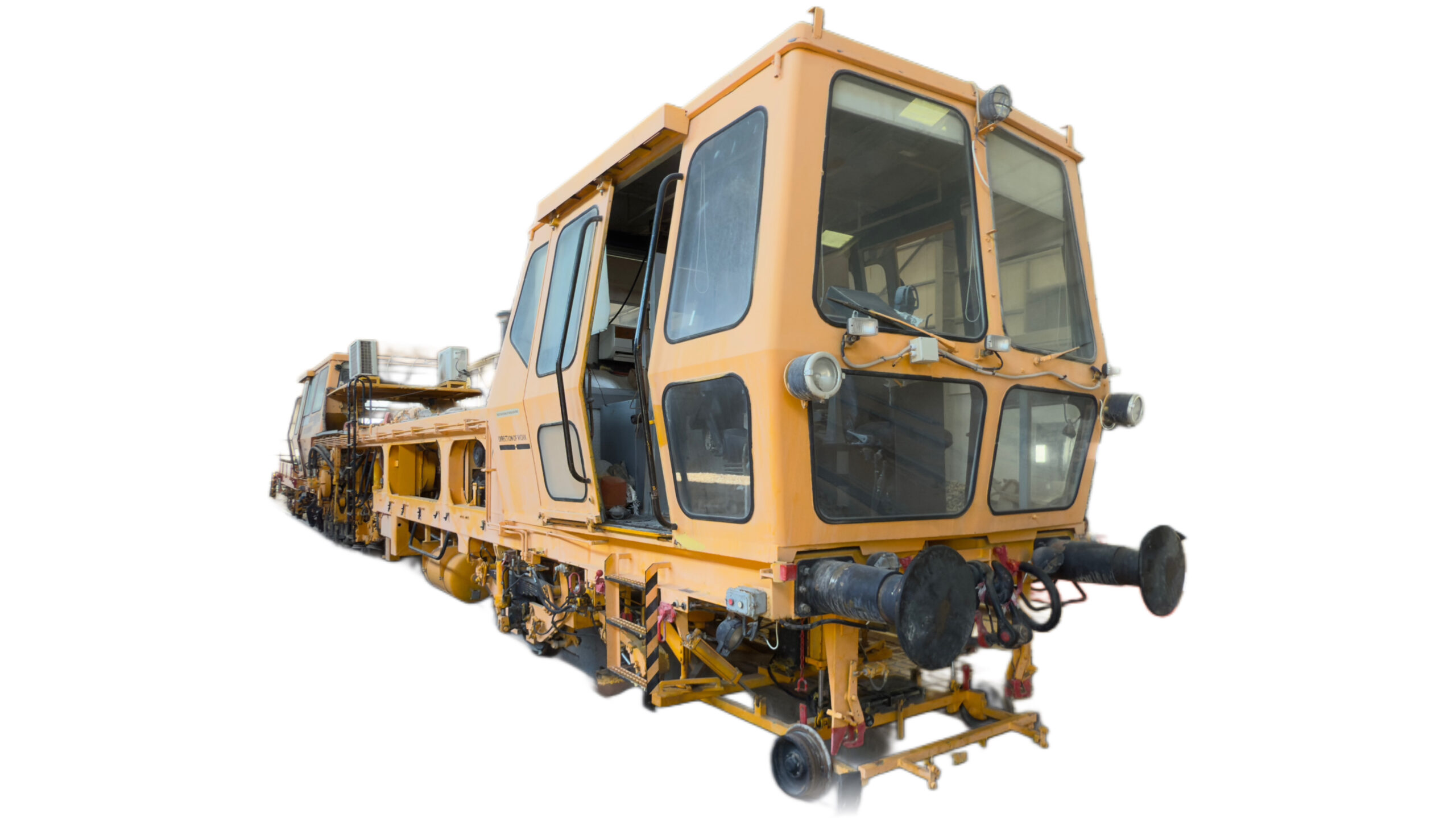

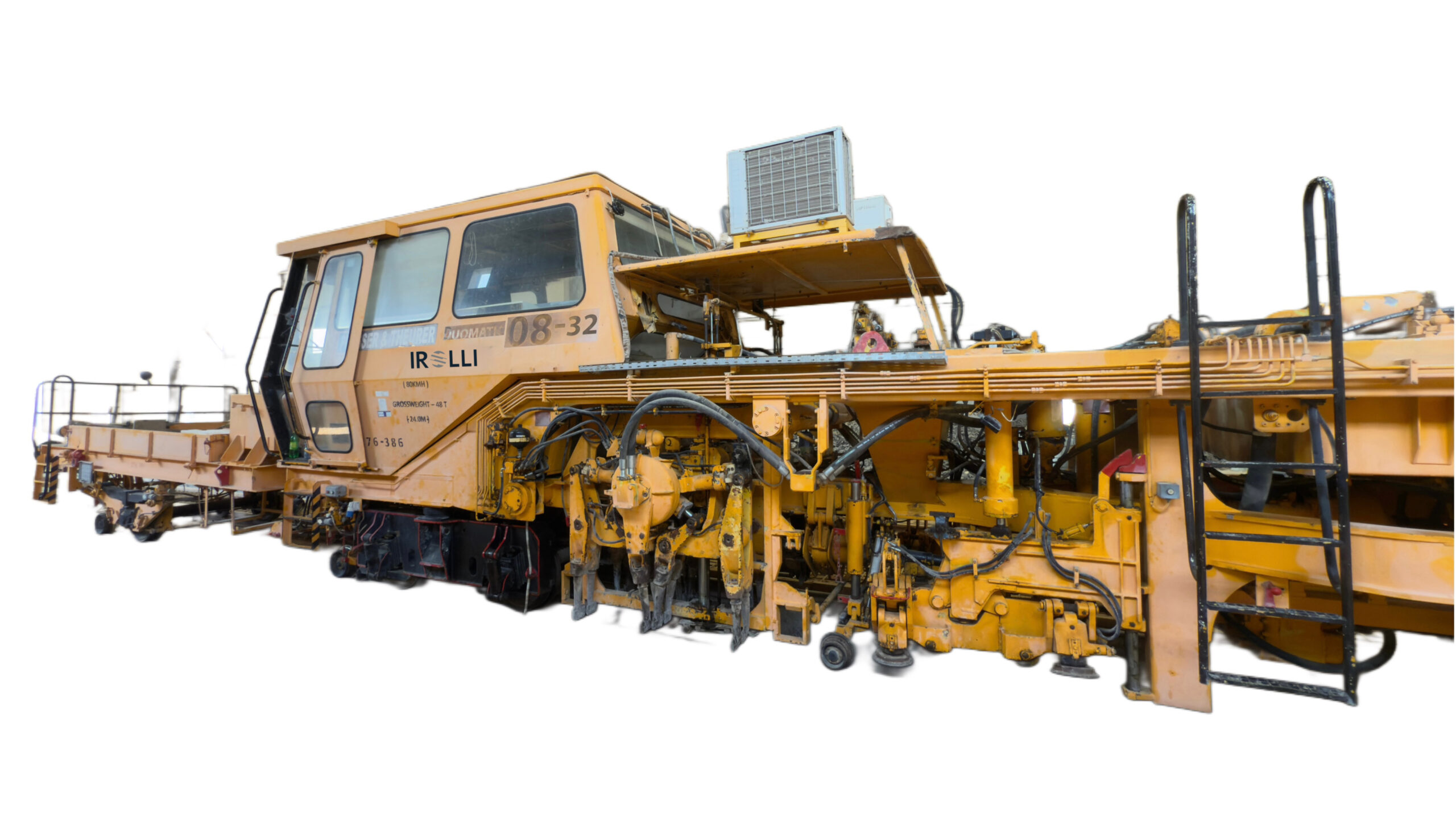

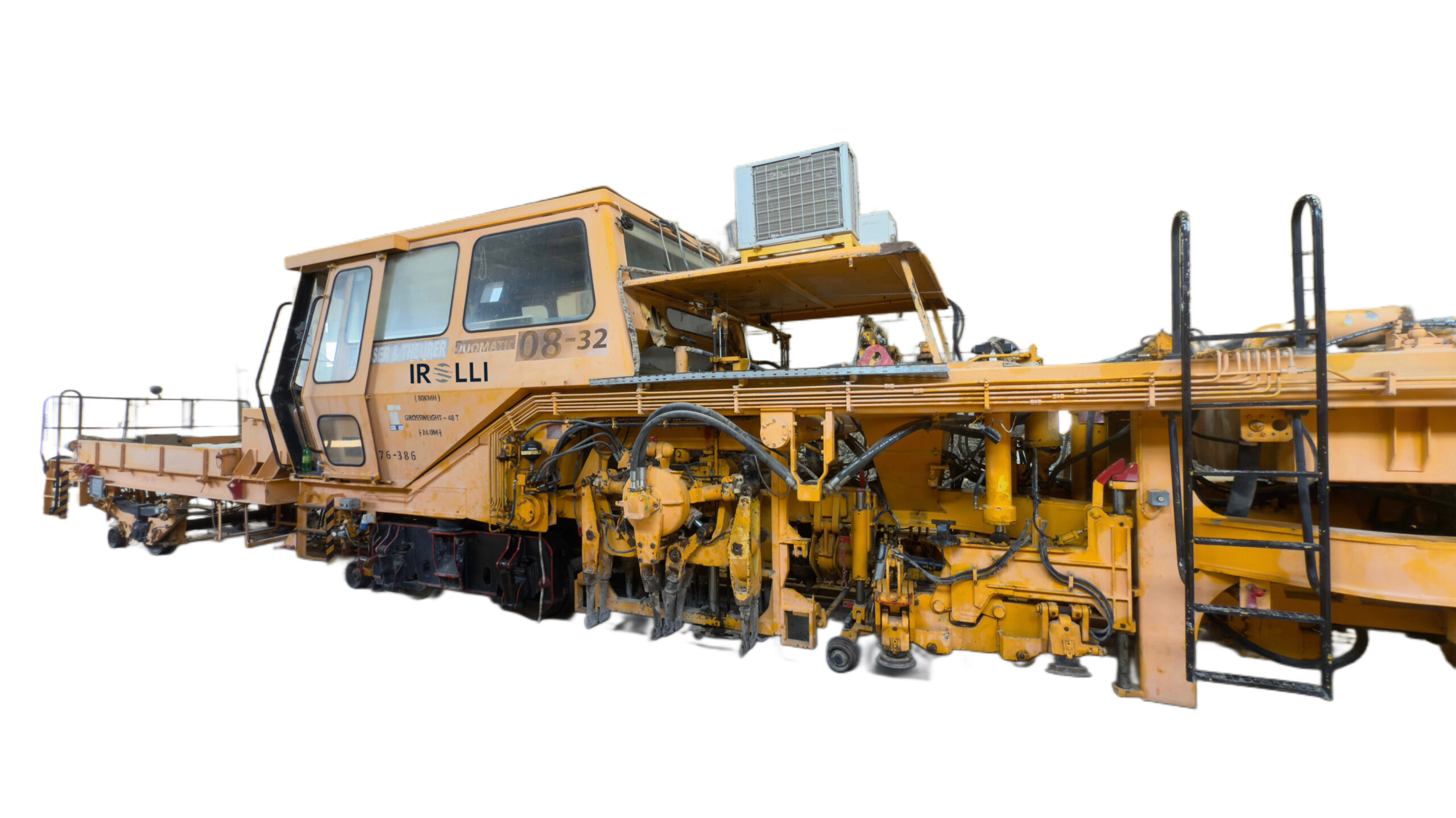

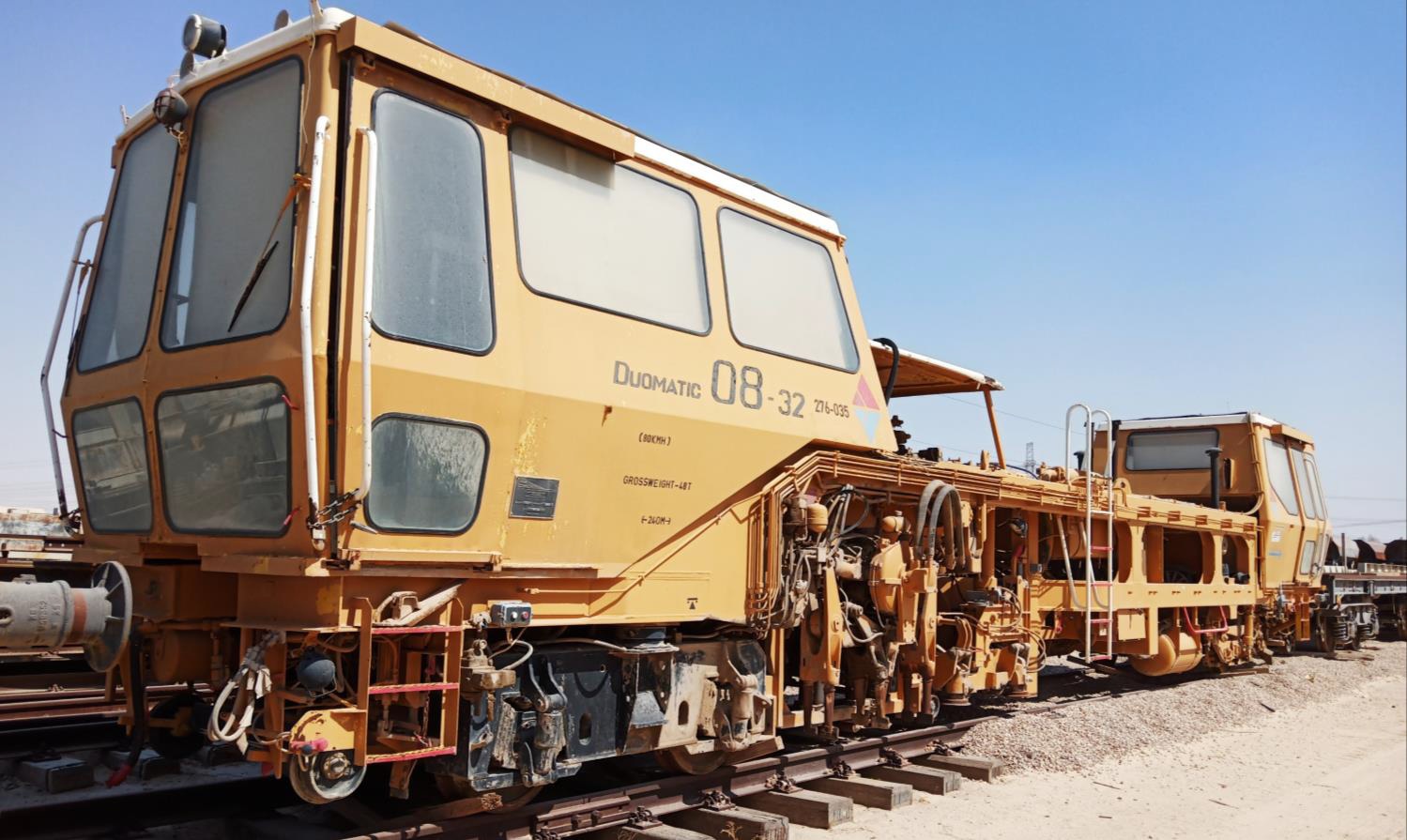

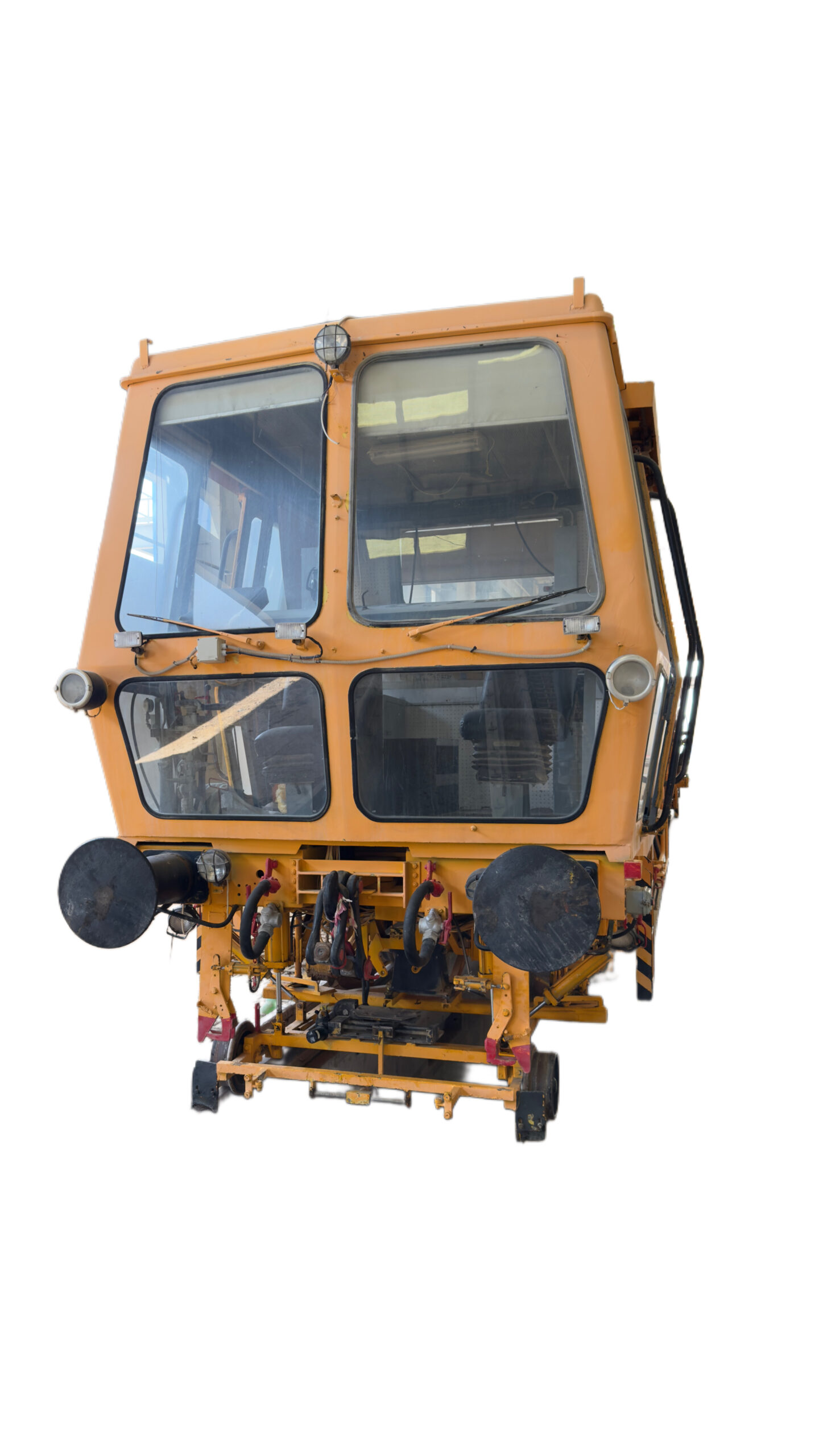

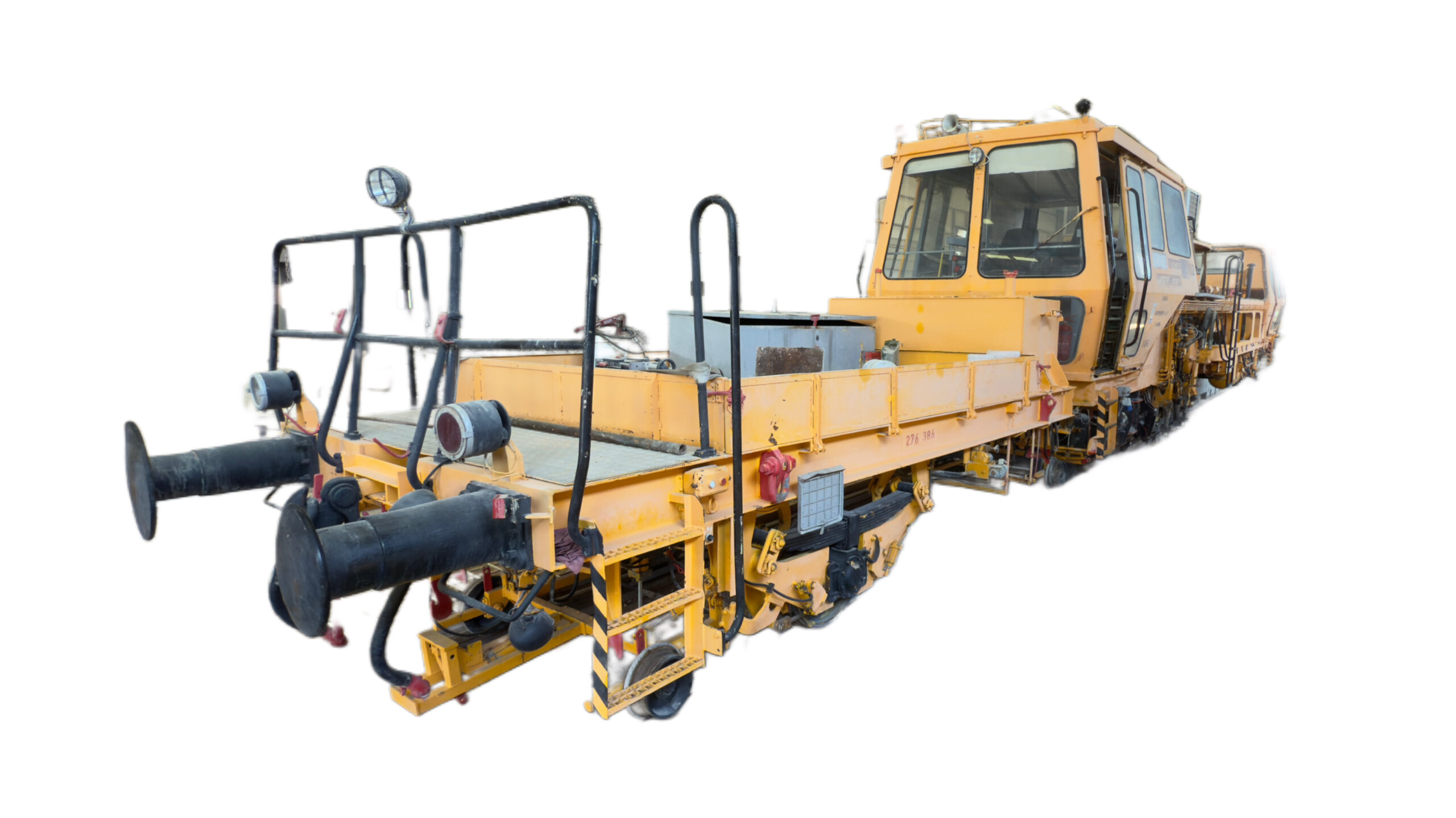

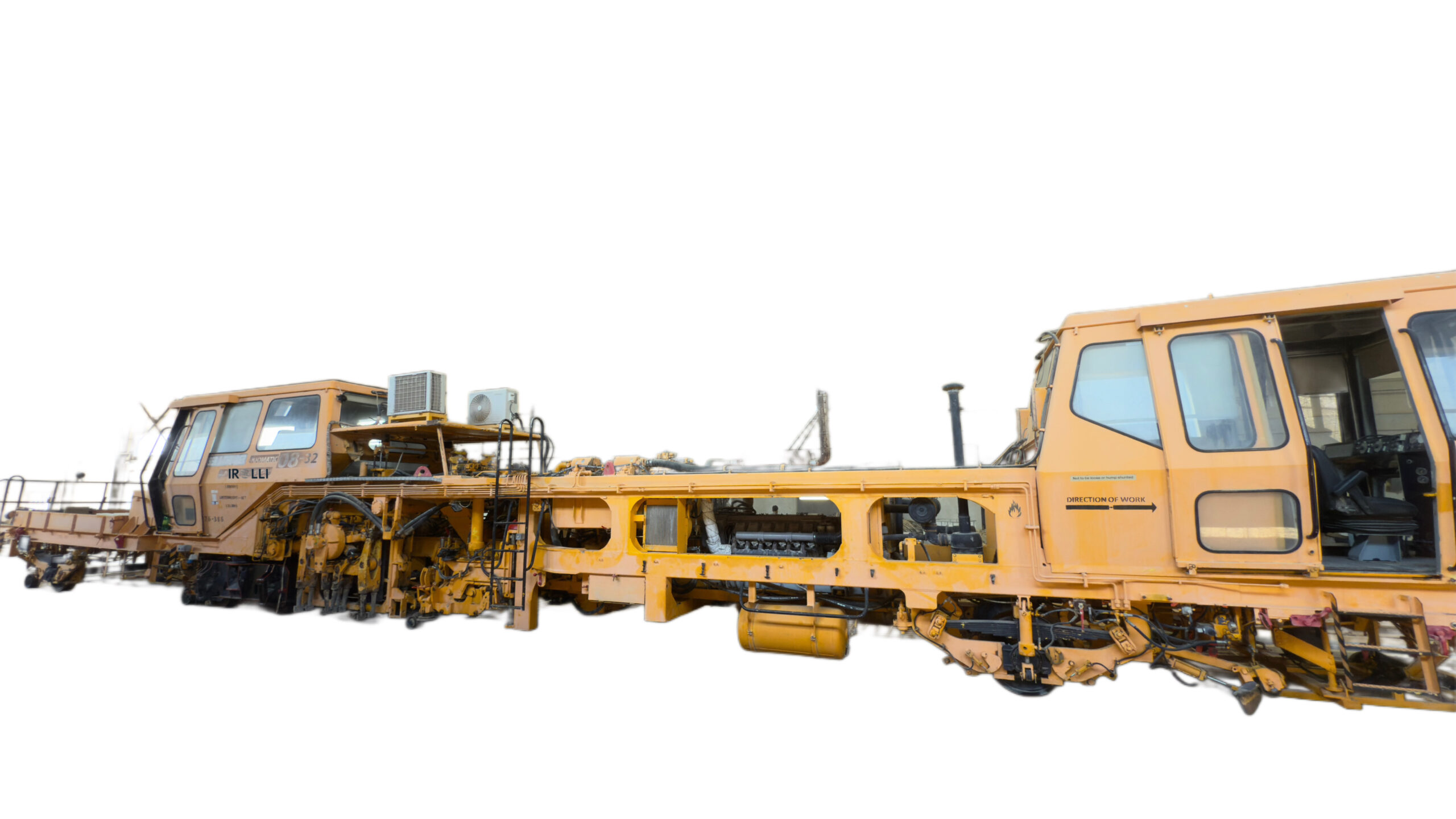

Tamping & Lining Machine Plasser & Theurer 08-32 Duomatic

Model : 08-32 Duomatic

Country Mfd : AUSTRIA

Gauge : 1435 mm

Engine : DEUTZ, F12L413, 340hp @ 2650rpm

Coupling Type : 85, UIC standard

Max Load/axle : 19T

Tamping Unit : 2x sleepers tamping units of 32 tines each

Operation : Tamping of 2 sleeper per circle

Max Speed (Self propelled) : 80 km/h

Max Speed (train formation) : 100 km/h

Dimensions (LxWxH) : 19140 x 3050 x 3600 mm

Weight (without Material Car) : 49000 kgs

Weight of Material Car : 5500 kgs
